Body Vent(Bleeder) Fittings (Hex Socket Head Style)

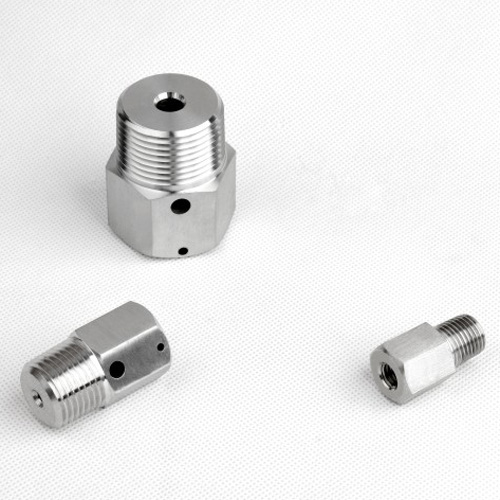

Product description: Body Vent(Bleeder) Fittings, Hex Socket Head Style
INQUIRY

Body Vent(Bleeder) Fittings, Hex Socket Head Style. This type of drain valve is to be installed on the bottom part of the body for discharging gas and small amount of dirt in the valve cavity.

DRAIN VALVE HEX SOCKET HEAD	THREAD	MATERIAL	PART NO.	HEX SIZE	OAL	PLATING	BALL
	1-11.5NPT	A105	BV1	S36	48mm	Zinc	440 SS
		304 SS	BV1-4			…….	440 SS
		316 SS	BV1-2			…….	TC
	3/4-14NPT	A105	BV34	S30	45mm	Zinc	440 SS
		304 SS	BV34-4			…….	440 SS
		316 SS	BV34-2			…….	TC
	1/2-14NPT	A105	BV12	S22	39mm	Zinc	440 SS
		304 SS	BV12-4			…….	440 SS
		316 SS	BV12-2			…….	TC
		4140	BV12-3			…….	TC
	3/8-18NPT	A105	BV38	S19	33mm	Zinc	440 SS
		304 SS	BV38-4			…….	440 SS
		316 SS	BV38-2			…….	TC
		A105	BV38-L	S22	39mm	Zinc	440 SS
		316 SS	BV38-L-2			…….	TC
		4140	BV38-L-3			Zinc	TC
	1/4-18NPT	A105	BV14-2	S17	32mm	Zinc	440 SS
For Service to 10,000 PSI		304 SS	BV14-4			…….	440 SS
		316 SS	BV14-2			…….	TC
		A105	BV14-L	S22	42.2mm	Zinc	440 SS
		316 SS	BV14-L-2			…….	TC
		4140	BV14-L-3			Zinc	TC
